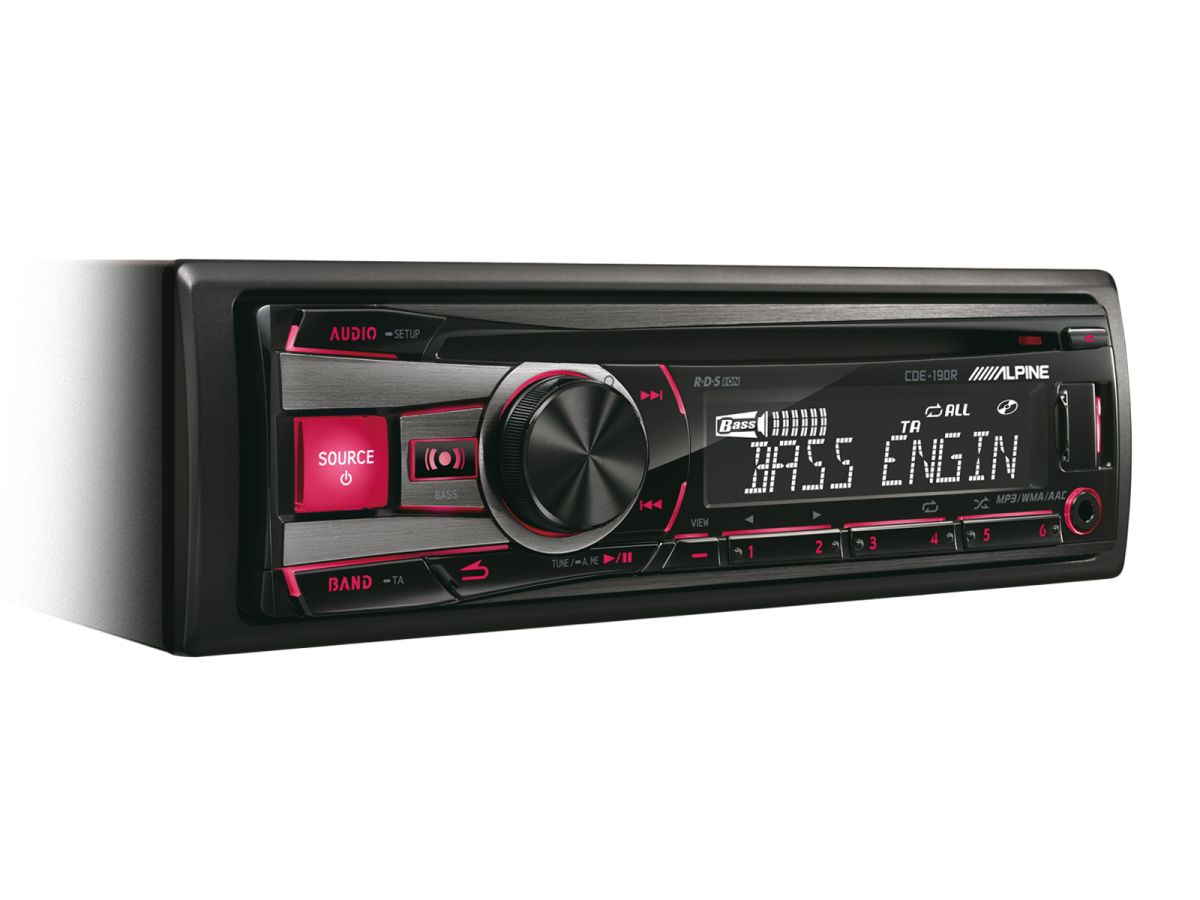

SINTO CD / CONTROLLO USB - CDE-190R

CDE-190R è la soluzione economica one-DIN che potenzia l'audio della tua auto grazie
alla qualità Alpine,
per apprezzare la musica per ore ed ore.

Semplice connessione con porta USB frontale ed ingresso AUX

Tramite la porta USB frontale e l'ingresso AUX,
sarà possibile collegare dispositivi aggiuntivi come memorie USB, Hard Disk o dispositivi portatili.

Caratteristiche

Tuner
Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
Memory: Auto Memory
Seek Mode: Local/DX Selection
RDS
RDS Functions: AF, TA, TP, PTY, EON, Radio Text
Disc Player
Disc Type: CD Player
Disc Playback Type: CD, CD-R/RW
Music Playback: CDDA, MP3, WMA, AAC Playback
M.I.X. Random Play: M.I.X. Mode
Repeat
Playback Control: Play/Pause/Forward/Backward
CD Text Display: Disc/ Track display
CD Text Name Search
Percentage Search (MP3/AAC/WMA Only)
Zero data Mute
DAC: Multi Bit DAC
Digital Servo
USB Media Connection
USB Connection: Front USB Connection with 1000mA charging support and iPhone quick charging
Music Playback: MP3, WMA, AAC Playback
USB Class: Mass Storage Class
File/Folder Name Search
Percentage Search
Folder Up/Down
M.I.X. Random Play: Files in a folder, All
Repeat
Sound Tuning
BassEngine SQ
Subwoofer Level Adjustment
Subwoofer Phase Select
Subwoofer System Select: Subwoofer Level Control Management
Low Pass Filter
Default Equalizer setup
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classic
3-band Parametric Equalizer
Factory EQ: 10 types
Tone control: Bass/Mid/Treble
Loudness
Source Tone Memory
Power IC Management System
Generale
Power Output: 4 x 50W High Power Amplifier
Display LCD: 13 Segments White LCD Display 1Line
Illumination: 2 illumination Colours Selectable (Green/Red)
Control Type: Rotary Encoder Knob
2 PreOuts (2V, Front + Rear/Subwoofer)
AUX-In: Front AUX Input (3.5mm mini jack)
Steering Wheel Remote Control Ready
Remote Control Ready
Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
Detachable DIN Trim Plate
Detachable Face Plate
Dimmer
Power Antenna Lead Output
Remote Turn-On Output
Face Color: Black
Mute: -20dB Mute (Remote control only)
Specifiche

Max Power Output Ratings
Max Power Output: 4 x 50W
FM Tuner
Tuning Range: 87.5 - 108.0 MHz
Mono Usable Sensitivity: 0.7 µV
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB
MW Tuner
Tuning Range: 531 - 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 µV / 28 dB
LW Tuner
Tuning Range: 153 - 281 kHz
Usable Sensitivity (IEC Standard): 31.6 µV / 30 dB
Disc Player
Frequency Response: 5 - 20k Hz (±1 dB)
Total Harmonic Distortion (at 1kHz): 0.008 %
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1kHz): 85 dB
Wow & Flutter (%WRMS): B.M.L.
USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1,000 mA
USB Class: Mass Storage Class
File System: FAT 12/16/32
MP3 Decoding: MPEG-1/2 Audio Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: AAC-LC Format ''.m4a'' File
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
Total Harmonic Distortion (at 1kHz): 0.008 %
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 105 dB
Channel Separation (at 1kHz): 85 dB
Sound Tuning
Subwoofer Level Adjustment: 0 to 15
Subwoofer Phase Setting: 0° or 180°
Low Pass Filter: Off, 60/80/120/160 Hz
Bass Level Control Range: -7 to +7 dB
Bass Center Frequency: 60/80/100/120 Hz
Bass Bandwidth Adjustment (Q): 4 Choices (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
Mid Level Control Range: -7 to +7 dB
Mid Center Frequency: 500/1k/1.5k/2.5k Hz
Mid Bandwidth Adjustment (Q): 4 Choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
Treble Level Control Range: -7 to +7 dB
Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
Treble Bandwidth Adjustment (Q): 2 Choices (0.75=wide, 1.25=narrow)
Loudness: 100 Hz 10 dB
Bass Engine SQ: Level 0 – 6
Application SVolume Level: -14 to +14dB
Generali
Power Requirement: 14.4 V.DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 2V / 10k ohms
Aux In: 1.4V / 10k ohms
Maximum Mounting Angle: 35° from Horizontal
Weight: 1.24 kg
Dimensioni
Din Size: 1 DIN
Chassis Size (W x H x D) mm: 178 x 50 x 161,5 mm
Nose Piece Size (W x H x D) mm: 170 x 46 x 25 mm
